Slides, But in Terminal

Preface

Inspiration came from a lecture by Yanyan Jiang: [算法竞赛入门] 为什么要逼大家用 NOILinux？, referenced but not entirely the same.

Mastering this skill will allow you to—display “slides” in the terminal. Its practicality is limited, but it’s fun to play with ·^v^·.

Demo

Implementation

Overall Framework

Launcher

First, print the cover (essentially outputting a page of rendered text in the terminal), then use read to take input and control slide behaviors such as page flipping, image display, exiting, etc.

0_flow.sh：

#!/bin/bash

bash ./1_banner.sh         ## print the cover

pc=1	# page counter

while true
do
    read -p ":" choice     ## take input and control slide behaviors

    if [ "$choice" == "p" ]; then           # previous page
        ((pc--))
        bash ./${pc}*
    elif [ "$choice" == "g" ]; then         # display an image
        xdg-open ./load_init.png
    elif [[ $choice =~ ^[1-7]$ ]]; then     # go to the specific page
        pc=$choice
        bash ./${pc}*
    elif [ "$choice" == "E" ]; then         # exit the script
        break
    else                                    # default: next page
        ((pc++))
        bash ./${pc}*
    fi
done

Single Page Display

Displaying a single page essentially means showing a page of text. The basic steps are:

Clear the previous page’s content using clear;
Calculate the total number of lines of the rendered text;
To center the content vertically, calculate the padding for the top and bottom;
Print the top padding, render and print the content text, then print the bottom padding.

For example: (2_question.sh)

clear

length=`python3 renderer.py question.md | wc -l`
total=`tput lines`
sus=$((($total-$length)/2))

for ((i=1; i<=$sus; i++))
do
    echo
done

python3 renderer.py question.md

for ((i=1; i<$sus; i++))
do
    echo
done

Image Display and External Program Calls

Use read to take input. When the input is a specific character, use xdg-open to open a specific image. Close it with the ESC key after displaying.

read -p ":" choice
if [ "$choice" == "g" ]; then
    xdg-open ./picture.png
fi

Similarly, replacing xdg-open ... with other commands can play audio/video or execute various programs.

Text Rendering

ASCII Art for Cover Pages

Use figlet to display the theme word and lolcat to color it. Besides the font styles that come with figlet, you can find and download more font styles from figlet-fonts. The “Boot” shown above corresponds to the command figlet " Boot" -f roman | lolcat -S 30. (Another optional command-line tool is toilet.)

ESC Escape Sequences

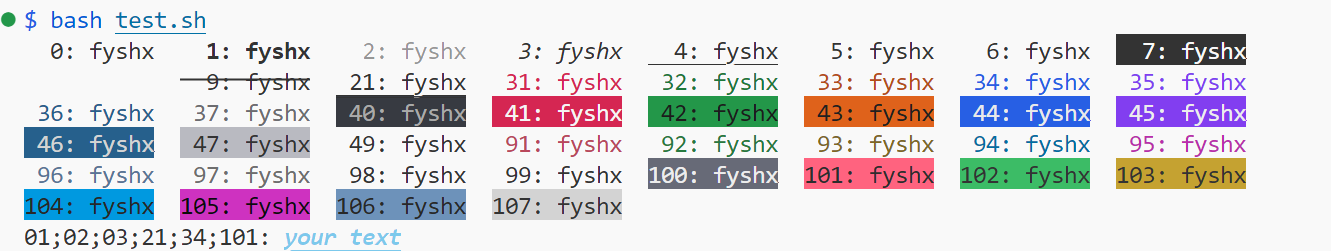

The printf command can output fancier text in the terminal using \033 escape sequences. It can achieve simple effects like color, bold, italics, etc., and multiple effects can be combined. For example, the last line in the image corresponds to printf "\033[2;34;01;21;09myour text\033[0m\n". (This also applies to output in other programming languages. 033 is the octal ASCII code for ESC. The specific colors depend on the terminal’s color scheme.)

Markdown Rendering

glow: glow is a command-line tool, used as glow foo.md.
rich: rich is a Python library that can render Markdown.

Other Interesting Command-Line Tools

asciiquarium

ASCII Art aquarium, very beautiful. You can find the ASCII fish in my avatar here, above the third seaweed from the left in the image below:
oneko

Summon a little cat, VERY cute:

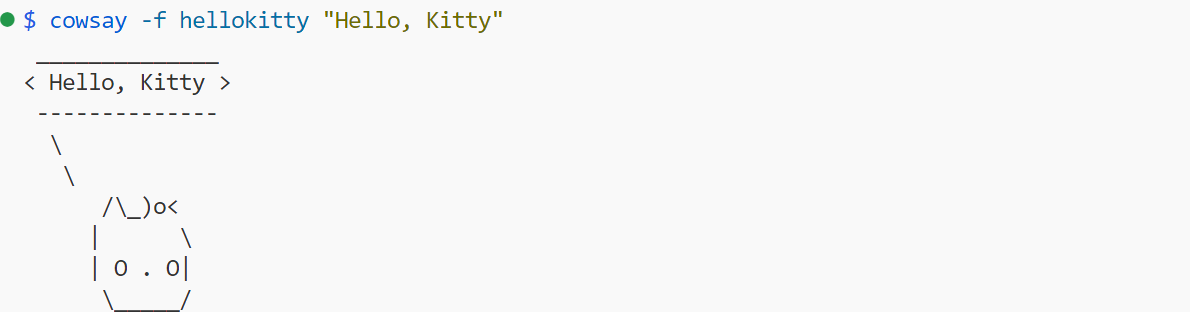

cowsay

dialog

Interactive TUI dialog boxes, which are also very suitable for single-page slide presentations, for example:

#!/bin/bash
choice=$(dialog --clear --title "Menu" --menu "Make Your Choice" 10 40 3 \
         1 "Show Greeting" 2 "Enter Something" 3 "Show Figure"  2>&1 >/dev/tty)

case $choice in
    3)
        xdg-open ./figure_1.png
        ;;
    # SNIP #
esac
